| Float setting notes
|
| 1. Fuel pressure is
critical to float spillage 2.5 to 3 lbs.
|
| 2. For aggressive
off-road use float drop should be limited
|
| Down
load Hi-Res version |
|

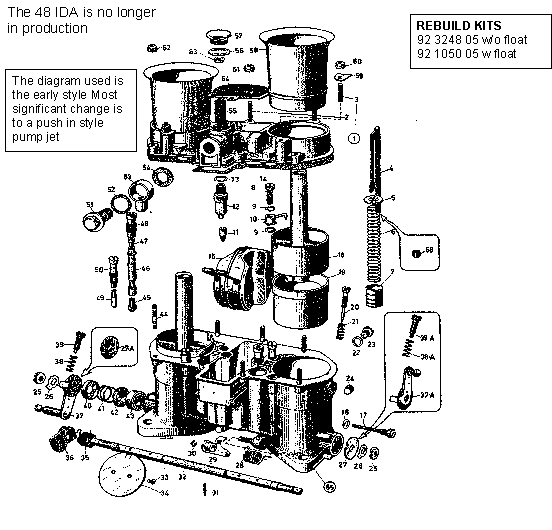

| KEY CALIBRATED PARTS
|
| 10) 76402 xxx Pump Jet late
style push in
|
|
76407 xxx Pump Jet
Early style bolt in
|
| 12) 79504 xxx Needle Valve
|
| 15) 41015 007 Brass Float
|
| 19)
72128 xxx Venturi (Choke)
|
| 45)
73401-xxx Main Jet
|
| 46)
61450 xxx Emulsion Tube
|
| 47) 77401-xxx Air corrector
Jet
|
| 49) 74823 xxx Idle
Jet |
|
